Description
The KWH meter is used to measure the energy which the house consumes.

General
The DDS226 type single-phase electronic watt-hour meter adopt exclusive use LSI, the device typifying new periphery component, simple structure, high reliability, low power consumption, long life etc, is suitable for the single-phase AC active electric energy with rated frequency of 50Hz.

Function and features
1,Measure active electric energy, no need of calibration for long-term operation;
2,Adopt dedication meter age chip ADE7755;
3,Adopt lasted electricity dedication integrated circuit including digital multiplier overseas, greatly improved dynamic working range of Meter, making 1 multiple actual overload;
4,Have good mistake linearity in the range of 5%Ib—Imax;
5,Few periphery component, simple structure, low power consumption;

Specification

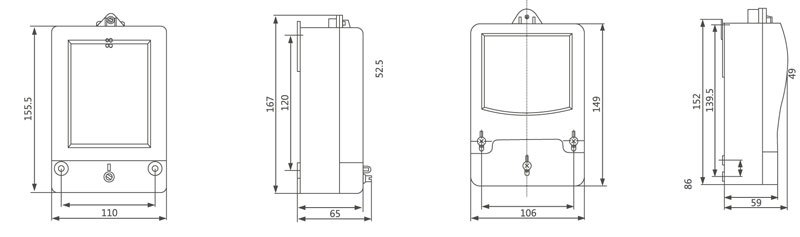

Overall and Mounting Dimensions(mm)
