Description
The series of CKX8 busbar system is a modern enterprise, high-rise buildings and other various need of large current places of the most ideal power transmission and distribution equipment. Has the characteristics of small volume, large transmission capacity, low line loss, short circuit of high strength, good heat radiating performance, short design cycel, long service life, easy installation, flexible construction.

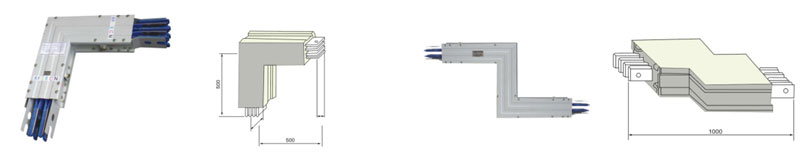

Specification
We provide special FC units and integrated connection units, to connect busbar system with distribution cabine. We can adjust connection design according to specific outlet way of user low-voltage cabinet, both the top outlet and the bottom one acceptable, and the current up to 6300A

Rated voltage:380V ( 660V )
Rated frequency:50HZ
Directly connected with the switchgear

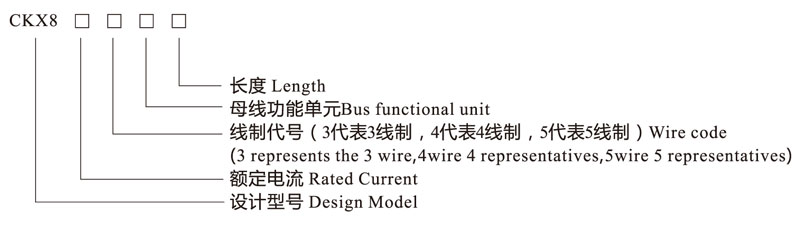

Model Meaning

Compensation for expansion
Each part and component of joint pack is designed with waterproof measures. Meanwhile, joint pack cover guarantees a higher level of protection.

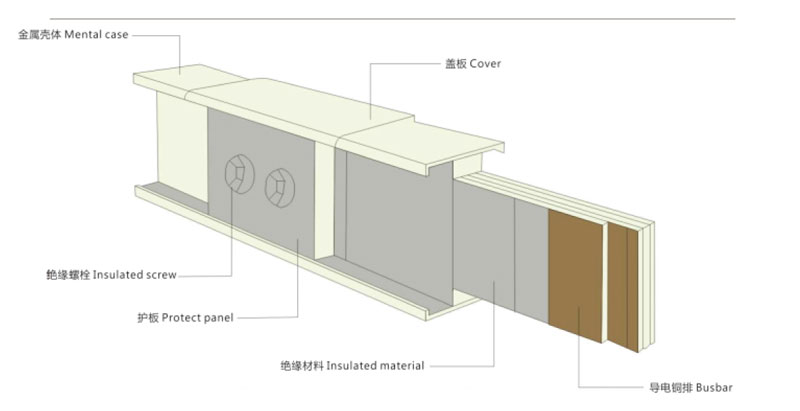

Insulated busbar system details
